The Jurgens Tourer 5224 is an 18ft single-axle caravan with an island queen bed at the front, a lounge in the middle and a rear ensuite. It is the most compact layout in the Tourer range, and the easiest to tow, park and store.
Slide into the island queen bed after a day on the road and wake up to the kettle on and the awning out. The 5224 is made for couples who want the freedom to keep moving without giving up comfort: a lounge for slow mornings, a full kitchen opposite for cooking a proper meal, and a rear ensuite with a shower, toilet and washing machine, so a week away never feels like roughing it. The tunnel boot takes the chairs, the table, the fishing rods and the bikes, so everything that makes the trip yours comes along.
Light where it counts, strong where it matters
A single axle keeps the 5224 light and nimble. The hot-dipped galvanised chassis is built to last, and the honeycomb floor saves weight while being stronger than a traditional floor, which leaves more of the payload for the things you actually want to take.

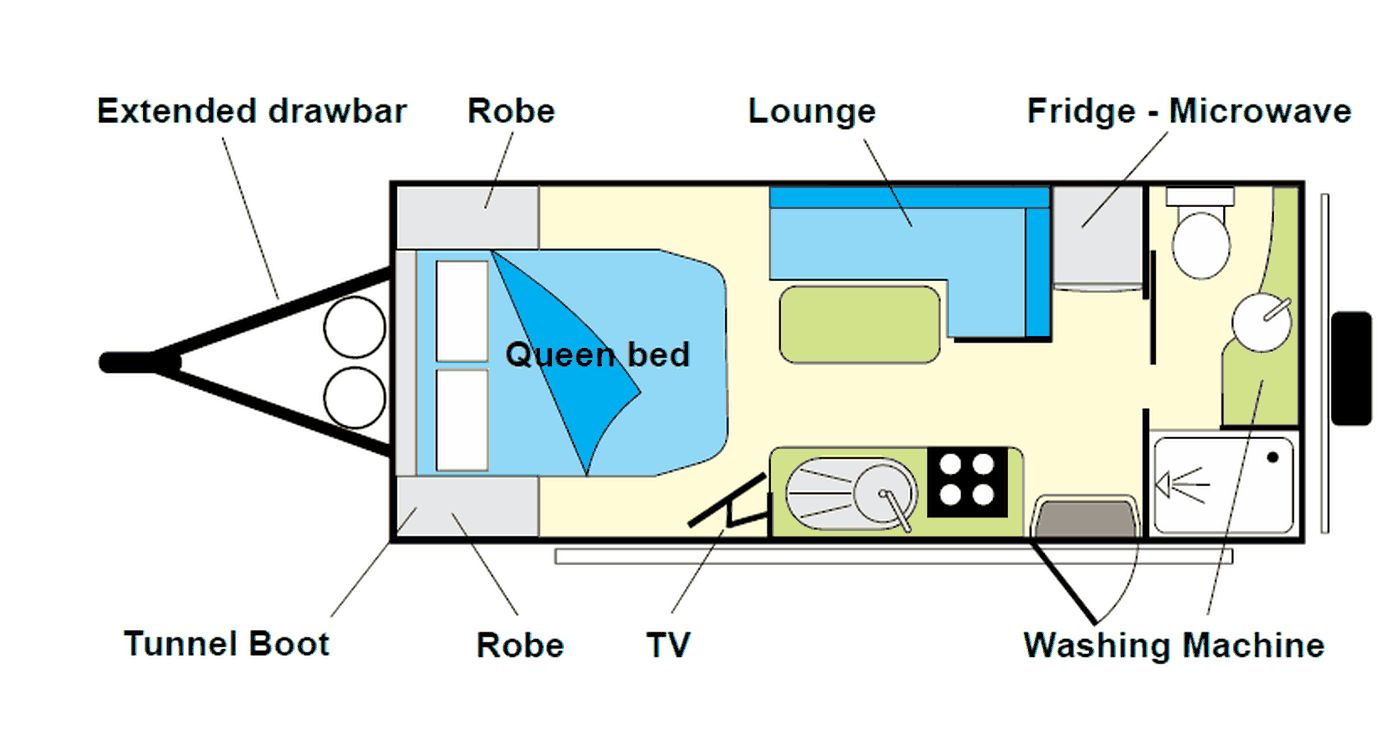

Jurgens Tourer 5224 floorplan
Jurgens Tourer 5224 specifications
| Berths | 2 |
|---|---|
| Internal length (mm) | 5578 (18’3″) |
| Body length (mm) | 5766 (18’11”) |
| Overall length (mm) | 7938 (26’1″) |
| Overall width (mm) | 2467 (8’1″) |
| Internal width (mm) | 2250 (7’5″) |
| Overall height (mm) | 2903 (9’6″) |
| ATM (kg) | 2600 |
| Tare (kg) | 1950 |
| Payload (kg) | 650 |
| Ball weight (kg) | 150 |
| Axle configuration | Single |
| Suspension | Al-ko eye to eye, 10 leaf |
| Chassis | Hot-dipped galvanised |
| Tyre size | 245/70 R15 |
Standard inclusions
Comfort and entertainment
- Island queen bed with innerspring mattress
- Reverse-cycle air conditioning
- 12V LED TV with Winegard Air 360 antenna (TV and AM/FM)
- Stereo and radio head unit
- Cafe dinette or L-shaped lounge, depending on layout
Power
- 200W solar panel
- 100Ah lithium battery
- Anderson plug and 7-pin trailer plug
Kitchen
- 270L compressor fridge
- 20L microwave
- 3-burner gas cooktop plus electric hotplate
- 12V rangehood
- Stainless steel sink with drainer
Bathroom and laundry
- Rear ensuite
- Top-load washing machine
Water and gas
- Two 95L fresh water tanks
- Instantaneous hot water service
- Gas bayonet
- Two 4.5kg gas bottles on drawbar mounts
Build and towing
- Hot-dipped galvanised chassis
- One-piece composite roof, sides and rear wall with integrated polyurethane framing
- Honeycomb floor
- Interlocking composite cabinetry
- Extended A-frame drawbar and 50mm ball coupler
- Al-ko electric drum brakes
- 15-inch alloy wheels
- Camec Odyssey Aero entry door and manual pull-out step
- Rollout awning with white and amber lights
- Checker plate front wall
